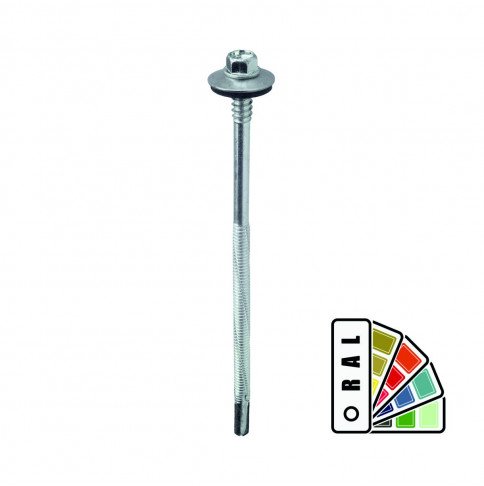

Self-drilling screw for fixing sandwich panels to metal SMSt12

Self-drilling screw for fixing sandwich panels to metal SMSt12
Self-drilling screw for fixing sandwich panels to metal SMSt12
Self-drilling screw for fixing sandwich panels to metal SMSt12
Self-drilling screw for fixing sandwich panels to metal SMSt12
Self-drilling screw for fixing sandwich panels to metal SMSt12
Цена: 0.00 грн.
  • Certified in Ukraine
  • For fastening sandwich panels in vertical and horizontal positions
  • Powder coating of self-tapping screws in any RAL color
  • The thickness of the zinc coating is not less than 12 microns
  • The thickness of powder coating is not less than 50 microns
  • Conforms to ISO 10666
  • The drilling thickness is 12 mm.
  • The EPDM gasket has high resistance to UV radiation and atmospheric influences, does not lose elasticity over time and retains its properties under the influence of temperatures in the range from -50 oС to +120 oС.

Code

Nominal size threads, mm

Length, mm

Size under wrench, mm

Thickness drilling, mm

The diameter of the washer, mm

Quantity packaging, pcs

SMS556390t12Ef

5,5/6,3

90

8

12

19

100

SMS5563105t12Ef

5,5/6,3

105

8

12

19

100

SMS5563130t12Ef

5,5/6,3

130

8

12

19

100

SMS5563135t12Ef

5,5/6,3

135

8

12

19

100

SMS5563150t12Ef

5,5/6,3

150

8

12

19

100

SMS5563180t12Ef

5,5/6,3

180

8

12

19

100

SMS5563205t12Ef

5,5/6,3

205

8

12

19

100

SMS5563230t12Ef

5,5/6,3

230

8

12

19

50

SMS5563250t12Ef

5,5/6,3

250

8

12

19

50

SMS5563280t12Ef

5,5/6,3

280

8

12

19

50

SMS5563300t12Ef

5,5/6,3

300

8

12

19

50
