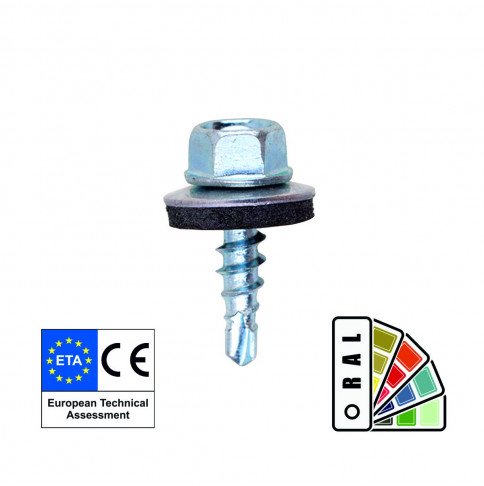

Self-drilling screw for fastening a metal profile to metal profile WSt2

Self-drilling screw for fastening a metal profile to metal profile WSt2
Self-drilling screw for fastening a metal profile to metal profile WSt2
Self-drilling screw for fastening a metal profile to metal profile WSt2
Self-drilling screw for fastening a metal profile to metal profile WSt2
Self-drilling screw for fastening a metal profile to metal profile WSt2
Цена: 0.00 грн.
  • European Technical Assessment ETA 25/0109
  • Certified in Ukraine
  • Designed for overlapping thin metal sheets
  • Powder coating of self-tapping screws in any RAL color
  • The thickness of the zinc coating is not less than 12 microns
  • The thickness of powder coating is not less than 50 microns
  • Conforms to ISO 10666
  • The drilling thickness is 2 mm.
  • The EPDM gasket has high resistance to UV radiation and atmospheric influences, does not lose elasticity over time and retains its properties under the influence of temperatures in the range from -50 oС to +120 oС.

Code

Nominal thread diameter, mm​

Length, mm

Size "turnkey", mm

 Drilling thickness, mm

Quantity in the package, pcs

WS4820t2Ef

4.8

20

8

2

250
