- Certified in Ukraine

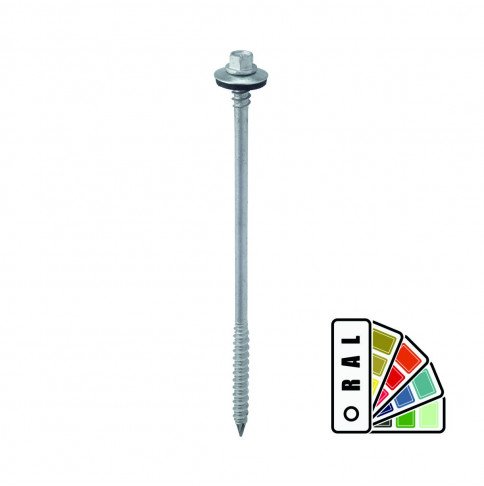

- For fastening sandwich panels in vertical and horizontal positions
- Powder coating of self-tapping screws in any RAL color
- RUSPERT anti-corrosion coating (the coating consists of three layers: metal zinc layer, high-quality anti-corrosion chemical conversion film and heat-treated ceramic layer)
- The thickness of powder coating is not less than 50 microns
- Pre-drilling with a 5-5.5mm drill bit
- The EPDM gasket has high resistance to UV radiation and atmospheric influences, does not lose elasticity over time and retains its properties under the influence of temperatures in the range from -50 oС to +120 oС.
Code | Nominal size threads, mm | Length, mm | Size under wrench, mm | Diameter drilling hole, mm | The diameter of the washer, mm | Quantity packaging, pcs |
SCS6864120Ef | 6,8/6,4 | 120 | 8 | 5-5,5 | 19 | 100 |
SCS6864140Ef | 6,8/6,4 | 140 | 8 | 5-5,5 | 19 | 100 |
SСS6864160Ef | 6,8/6,4 | 160 | 8 | 5-5,5 | 19 | 100 |
SСS6864190Ef | 6,8/6,4 | 190 | 8 | 5-5,5 | 19 | 100 |
SСS6864210Ef | 6,8/6,4 | 210 | 8 | 5-5,5 | 19 | 50 |
SСS6864240Ef | 6,8/6,4 | 240 | 8 | 5-5,5 | 19 | 50 |
SCS6864280Ef | 6,8/6,4 | 280 | 8 | 5-5,5 | 19 | 50 |
