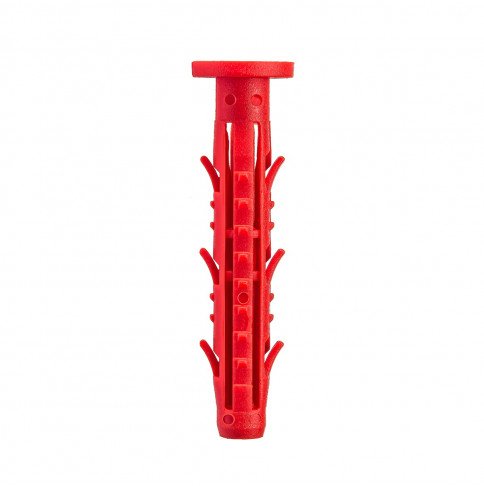

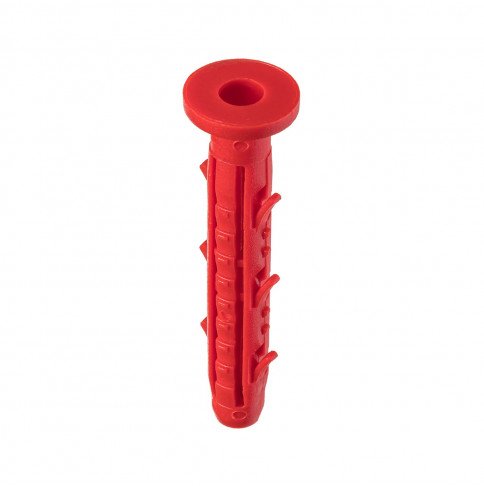

Universal frame fixing AXDN

Code

Diameter (drilling) nailed-in plastic anchor, mm

Nailed-in plastic anchor length, mm

Thrust length, mm

AXDN 10 70 C

10

70

6,0÷7,0

AXDN 10 90 C

10

90

6,0÷7,0

AXDN 10 110 C

10

110

6,0÷7,0

AXDN 10 130 C

10

130

6,0÷7,0

AXDN 10 150 C

10

150

6,0÷7,0

AXDN 10 170 C

10

170

6,0÷7,0

AXDN 10 190 C

10

190

6,0÷7,0

AXDN 10 210 C

10

210

6,0÷7,0

AXDN 10 250 C

10

250

6,0÷7,0

AXDN 10 290 C

10

290

6,0÷7,0

AXDN 10 330 C

10

330

6,0÷7,0

AXDN 12 70 C

12

70

7,0÷8,0

AXDN 12 90 C

12

90

7,0÷8,0

AXDN 12 110 C

12

110

7,0÷8,0

AXDN 12 130 C

12

130

7,0÷8,0

AXDN 12 150 C

12

150

7,0÷8,0

AXDN 12 170 C

12

170

7,0÷8,0

AXDN 12 190 C

12

190

7,0÷8,0

AXDN 12 210 C

12

210

7,0÷8,0

AXDN 12 250 C

12

250

7,0÷8,0

AXDN 12 290 C

12

290

7,0÷8,0

AXDN 12 330 C

12

330

7,0÷8,0

AXDN 14 70 C

14

70

8,0÷10,0

AXDN 14 90 C

14

90

8,0÷10,0

AXDN 14 110 C

14

110

8,0÷10,0

AXDN 14 130 C

14

130

8,0÷10,0

AXDN 14 150 C

14

150

8,0÷10,0

AXDN 14 170 C

14

170

8,0÷10,0

AXDN 14 190 C

14

190

8,0÷10,0

AXDN 14 210 C

14

210

8,0÷10,0

AXDN 14 250 C

14

250

8,0÷10,0

AXDN 14 290 C

14

290

8,0÷10,0

AXDN 14 330 C

14

330

8,0÷10,0
