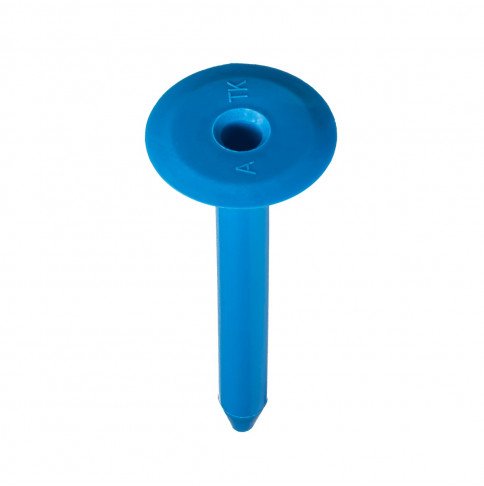

Anchor for thermal and hydro insulation of flat roofs LDTK

Anchor for thermal and hydro insulation of flat roofs LDTK
Anchor for thermal and hydro insulation of flat roofs LDTK
Anchor for thermal and hydro insulation of flat roofs LDTK
Anchor for thermal and hydro insulation of flat roofs LDTK
Anchor for thermal and hydro insulation of flat roofs LDTK
  • Trademark: Starfix
  • Country of origin: Poland
Цена: 0.00 грн.
  • European Technical Assessment ETA
  • ITB technical assessment
  • Exclusive dowel lengths 385 mm, 425 mm, 525 mm
  • The telescopic connection avoids the appearance of a thermal bridge.
  • Retains properties over a wide temperature range
  • Recommended for fastening heat-insulating and waterproofing materials on a flat roof

Code

Nailed-in plastic anchor length, mm

Pressure disk diameter, mm

Screw hole diameter, mm

Quantity per package, pcs.

LDTK35

35

50

6,3

200

LDTK55

55

50

6,3

200

LDTK85

85

50

6,3

200

LDTK105

105

50

6,3

200

LDTK135

135

50

6,3

200

LDTK155

155

50

6,3

200

LDTK165

165

50

6,3

200

LDTK185

185

50

6,3

200

LDTK235

235

50

6.3

100

LDTK285

285

50

6.3

100

LDTK325

325

50

6.3

100

LDTK385

385

50

6.3

100

LDTK425

425

50

6.3

50

LDTK525

525

50

6.3

50

Designed for fastening on a flat roof (in combination with self-tapping screws WM, WB) of such heat-insulating materials:

  • Styrofoam
  • Mineral wool
  • Styrofoam
  • Glass wool
  • PIR

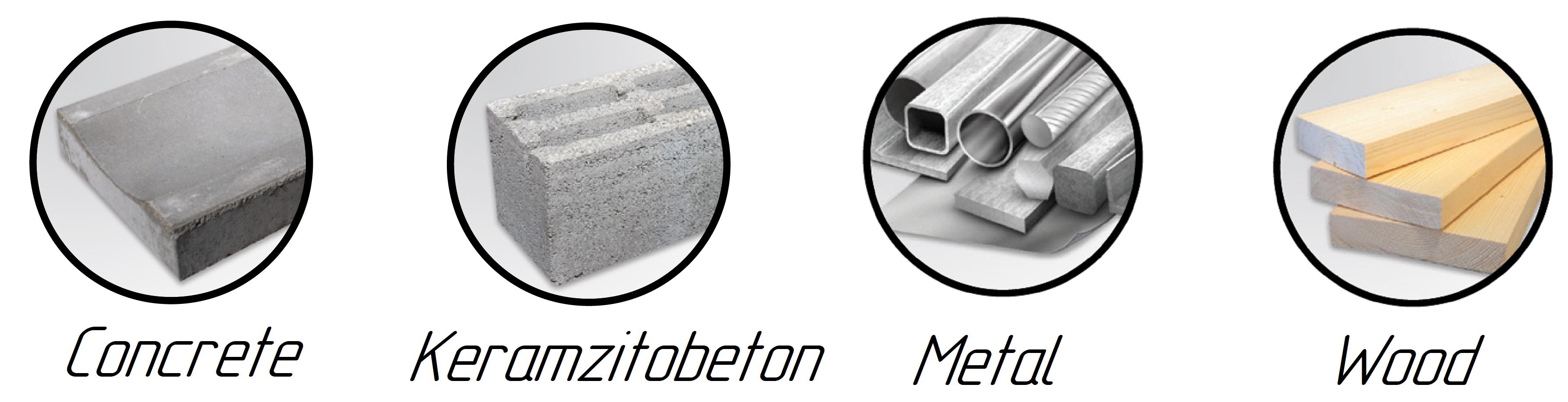

Foundation materials



  • Type of installation - push-through installation

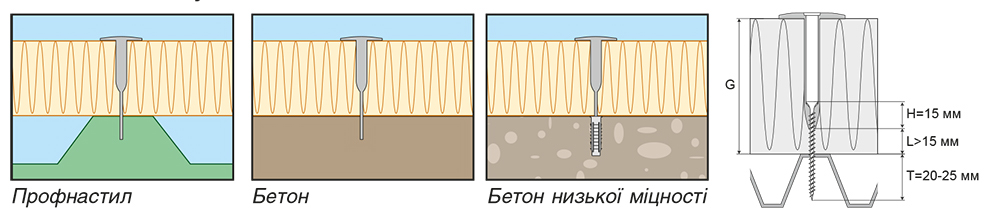

  • Installation instructions:


                                                                  Selection of fasteners for thermal insulation of soft roofs

Thermal insulation thickness, mm
Code
Self-tapping screw for fastening to corrugated board
Self-tapping screw for fixing in concrete
Thermal insulation thickness, mm
Code
Self-tapping screw for fastening to corrugated board
Self-tapping screw for fixing in concrete

50

LDTK35

WM 4,8×50

WB 6,1×60

260

LDTK185

WM 4,8×120

WB 6,1×120

60

LDTK35

WM 4,8×60

WB 6,1×70

260

LDTK235

WM 4,8×60

WB 6,1×70

70

LDTK35

WM 4,8×70

WB 6,1×80

270

LDTK185

WM 4,8×120

WB 6,1×140

70

LDTK55

WM 4,8×50

WB 6,1×60

270

LDTK235

WM 4,8×70

WB 6,1×80

80

LDTK55

WM 4,8×60

WB 6,1×70

280

LDTK185

WM 4,8×140

WB 6,1×140

90

LDTK55

WM 4,8×70

WB 6,1×80

280

LDTK235

WM 4,8×80

WB 6,1×90

100

LDTK55

WM 4,8×80

WB 6,1×90

290

LDTK185

WM 4,8×140

WB 6,1×150

100

LDTK85

WM 4,8×50

WB 6,1×60

290

LDTK235

WM 4,8×90

WB 6,1×100

110

LDTK85

WM 4,8×60

WB 6,1×70

300

LDTK235

WM 4,8×100

WB 6,1×120

120

LDTK85

WM 4,8×70

WB 6,1×80

300

LDTK285

WM 4,8×70

WB 6,1×80

120

LDTK105/RIF105

WM 4,8×50

WB 6,1×60

310

LDTK235

WM 4,8×120

WB 6,1×140

130

LDTK85

WM 4,8×80

WB 6,1×90

310

LDTK285

WM 4,8×60

WB 6,1×70

130

LDTK105/RIF105

WM 4,8×60

WB 6,1×70

320

LDTK235

WM 4,8×120

WB 6,1×140

140

LDTK85

WM 4,8×90

WB 6,1×100

320

LDTK285

WM 4,8×70

WB 6,1×80

140

LDTK105/RIF105

WM 4,8×70

WB 6,1×80

330

LDTK235

WM 4,8×140

WB 6,1×150

150

LDTK105/RIF105

WM 4,8×80

WB 6,1×90

330

LDTK285

WM 4,8×80

WB 6,1×90

150

LDTK135/RIF135

WM 4,8×50

WB 6,1×60

340

LDTK285

WM 4,8×90

WB 6,1×100

160

LDTK105/RIF105

WM 4,8×90

WB 6,1×100

340

LDTK325

WM 4,8×50

WB 6,1×60

160

LDTK135/RIF135

WM 4,8×60

WB 6,1×70

350

LDTK285

WM 4,8×100

WB 6,1×120

170

LDTK105/RIF105

WM 4,8×100

WB 6,1×120

350

LDTK325

WM 4,8×60

WB 6,1×70

170

LDTK135/RIF135

WM 4,8×70

WB 6,1×80

360

LDTK285

WM 4,8×120

WB 6,1×140

170

LDTK155/RIF155

WM 4,8×50

WB 6,1×60

360

LDTK325

WM 4,8×70

WB 6,1×80

180

LDTK135/RIF135

WM 4,8×80

WB 6,1×90

370

LDTK285

WM 4,8×120

WB 6,1×140

180

LDTK155/RIF155

WM 4,8×60

WB 6,1×70

370

LDTK325

WM 4,8×80

WB 6,1×90

180

LDTK165

WM 4,8×50

WB 6,1×60

380

LDTK285

WM 4,8×140

WB 6,1×150

190

LDTK135/RIF135

WM 4,8×90

WB 6,1×100

380

LDTK325

WM 4,8×90

WB 6,1×100

190

LDTK155/RIF155

WM 4,8×70

WB 6,1×80

390

LDTK285

WM 4,8×140

WB 6,1×150

190

LDTK165

WM 4,8×60

WB 6,1×70

390

LDTK325

WM 4,8×100

WB 6,1×120

200

LDTK135/RIF135

WM 4,8×100

WB 6,1×120

400

LDTK325

WM 4,8×120

WB 6,1×140

200

LDTK155/RIF155

WM 4,8×80

WB 6,1×90

400

LDTK385

WM 4,8×50

WB 6,1×60

200

LDTK165

WM 4,8×70

WB 6,1×80

410

LDTK325

WM 4,8×120

WB 6,1×140

200

LDTK185

WM 4,8×50

WB 6,1×60

410

LDTK385

WM 4,8×60

WB 6,1×70

210

LDTK155/RIF155

WM 4,8×90

WB 6,1×100

420

LDTK325

WM 4,8×140

WB 6,1×150

210

LDTK165

WM 4,8×80

WB 6,1×90

420

LDTK385

WM 4,8×70

WB 6,1×80

210

LDTK185

WM 4,8×60

WB 6,1×70

430

LDTK325

WM 4,8×140

WB 6,1×150

220

LDTK155/RIF155

WM 4,8×100

WB 6,1×120

430

LDTK385

WM 4,8×80

WB 6,1×90

220

LDTK165

WM 4,8×90

WB 6,1×100

440

LDTK385

WM 4,8×90

WB 6,1×100

220

LDTK185

WM 4,8×70

WB 6,1×80

440

LDTK425

WM 4,8×50

WB 6,1×60

230

LDTK165

WM 4,8×100

WB 6,1×120

450

LDTK385

WM 4,8×100

WB 6,1×120

230

LDTK185

WM 4,8×80

WB 6,1×90

450

LDTK425

WM 4,8×60

WB 6,1×70

240

LDTK165

WM 4,8×120

WB 6,1×120

460

LDTK385

WM 4,8×120

WB 6,1×140

240

LDTK185

WM 4,8×90

WB 6,1×100

460

LDTK425

WM 4,8×70

WB 6,1×80

250

LDTK165

WM 4,8×120

WB 6,1×140

470

LDTK385

WM 4,8×120

WB 6,1×140

250

LDTK185

WM 4,8×100

WB 6,1×120

470

LDTK425

WM 4,8×80

WB 6,1×90

250

LDTK235

WM 4,8×50

WB 6,1×60

480

LDTK425

WM 4,8×90

WB 6,1×100
