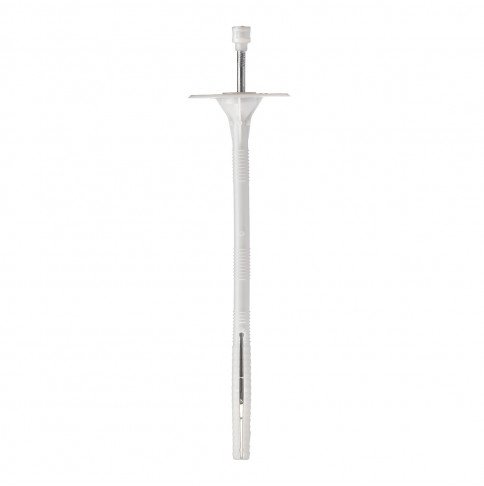

Anchor for fixing thermal insulation with elongated expansion zone and metal nail and thermal head LDK/TZ EasyFix

Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail  and thermal head LDK/TZ EasyFix
Anchor for fixing thermal insulation with elongated expansion zone and metal nail and thermal head LDK/TZ EasyFix
  • Торговая марка: EasyFix
  • Страна происхождения: Україна
Цена: 0.00 грн.
  • Отвечает требованиям ДСТУ Б В.2.6-35: 2008, ДСТУ Б В.2.6-36: 2008 и ETAG014
  • Удлиненная зона распора - 80мм
  • Оптимизирована форма зоны распора для лучшей установки в строительные материалы
  • Специальная термоголовка предотвращает появление мостика холода и защищает стержень от проникновения влаги
  • Перфорированная поверхность диска способствует облегчению штукатурных работ и гарантирует высокое качество сцепления со штукатуркой

Code

Diameter (drilling) nailed-in plastic anchor, mm

Nailed-in plastic anchor length, mm

Pressure disk diameter, mm

Thrust length, mm

  Minimum installation depth, mm

Maximum thermal insulation thickness, mm

Minimum drilling depth for through installation, mm

Quantity per package, pcs.​

LDK 10 100 TZ EasyFix

10

100

60

50

50

50

110

350

LDK 10 120 TZ EasyFix

10

120

60

50

50

70

130

300

LDK 10 140 TZ EasyFix

10

140

60

50

50

90

150

250

LDK 10 160 TZ EasyFix

10

160

60

80

50

110

170

200

LDK 10 180 TZ EasyFix

10

180

60

80

50

130

190

200

LDK 10 200 TZ EasyFix

10

200

60

80

50

150

210

150

LDK 10 220 TZ EasyFix

10

220

60

80

50

170

230

150

Estimated pull-out load:
from concrete - 0.75 kN
from solid red brick - 0.75 kN
from solid silicate brick - 0.75 kN
from a hollow ceramic block - 0.30 kN
from aerated concrete - 0.60 kN

Recommended for plaster facades and facades with a ventilated air layer.
For fixing such heat-insulating materials:
  • Styrofoam
  • Mineral wool
  • Styrofoam
  • Glass wool

Foundation materials

Characteristics
Длинна распорной зоны, мм80
Материал гвоздясталь
Для крепления минеральной ватыда
Для крепления пенопластада
Для штукатурного фасадада
Для вентилируемого фасадада

  • Type of installation - push-through installation
  • For installation in aerated concrete, foam concrete, shell rock and ceramic hollow block, it is recommended to use only drilling without impact
  • Recommended mounting parameters:
  • minimum base thickness - 100 mm
  • minimum center distance between dowels - 100 mm
  • minimum distance from the edge of the base to the dowel - 100 mm
  • Installation instructions:
  • 1. Drill a hole
  • 2-3. Hammer to the stop, hitting the body of the dowel with a hammer
  • 4-5. Hammer the spacer (nail) flush with the dowel
