Name: Anchor for fixing thermal insulation with elongated expansion zone and metal nail LZK/TN
Brand: EasyFix
SKU: EasyFix
Availability: InStock

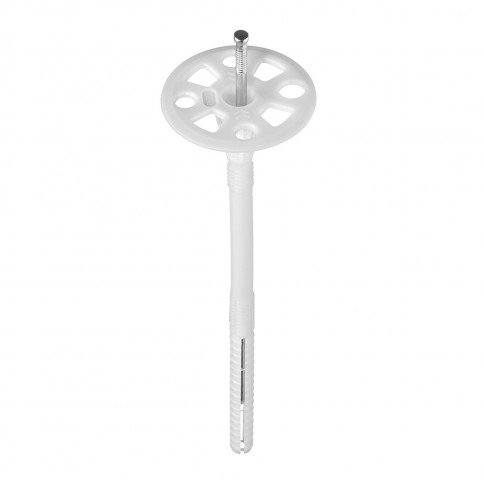

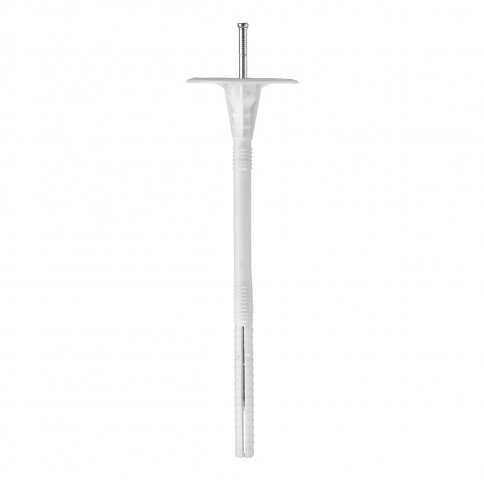

Anchor for fixing thermal insulation with elongated expansion zone and metal nail LZK/TN

Anchor for fixing thermal insulation with elongated expansion zone and metal nail LZK/TN

Trademark: EasyFix
Country of origin: Ukraine

EasyFix

0 reviews - Write a review

Цена: 0.00 грн.

Advantages

Meets the requirements of DSTU B V.2.6-35: 2008 and ETAG014
Extended expansion zone - 80mm
The shape of the expansion zone has been optimized for better installation in building materials
The perforated surface of the disc facilitates plaster work and guarantees high quality adhesion to the plaster.

Product information

Code	Diameter (drilling) nailed-in plastic anchor, mm	Nailed-in plastic anchor length, mm	Pressure disk diameter, mm	Thrust length, mm	Minimum installation depth, mm	Maximum thermal insulation thickness, mm	Minimum drilling depth for through installation, mm	Quantity per package, pcs.
LZK 10 80 TN	10	80	60	50	50	30	90	100
LZK 10 100 TN	10	100	60	50	50	50	110	100
LZK 10 120 TN	10	120	60	50	50	70	130	100
LZK 10 140 TN	10	140	60	50	50	90	150	100
LZK 10 160 TN	10	160	60	80	50	110	170	50
LZK 10 180 TN	10	180	60	80	50	130	190	50
LZK 10 200 TN	10	200	60	80	50	150	210	50

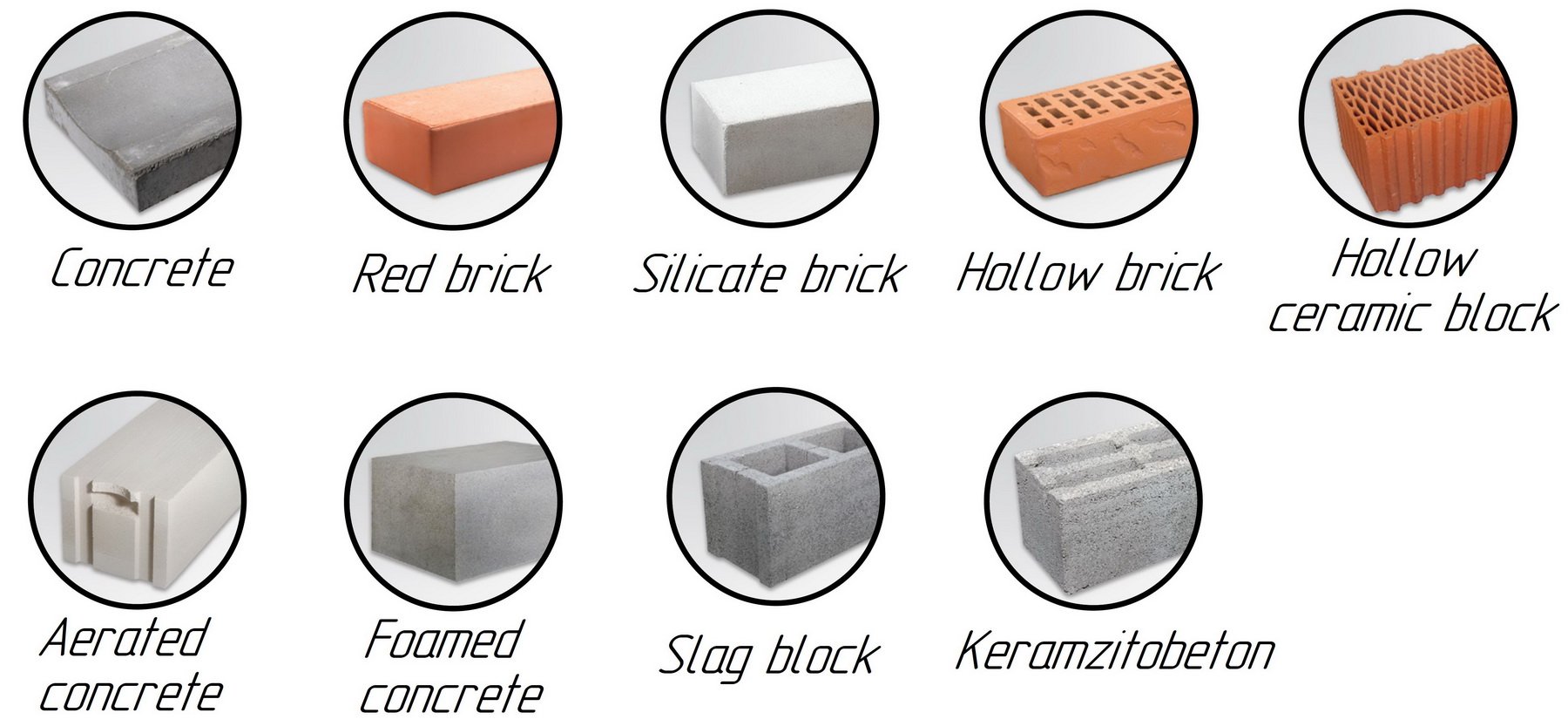

Estimated pull-out load:
from concrete - 0.75 kN
from solid red brick - 0.75 kN
from solid silicate brick - 0.75 kN
from a hollow ceramic block - 0.30 kN
from aerated concrete - 0.60 kN

Application area

Recommended for facades with ventilated air space.

For fixing such heat-insulating materials:

Mineral wool
Glass wool

Foundation materials

Technical Specifications

Characteristics
Length of spacing zone, mm	80
Nail material	steel
For fixing mineral wool	yes
For fixing foam	yes
For ventilated facade	yes

Installation instructions

Type of installation - push-through installation
For installation in aerated concrete, foam concrete, shell rock and ceramic hollow block, it is recommended to use only drilling without impact
Recommended mounting parameters:
minimum base thickness - 100 mm
minimum center distance between dowels - 100 mm
minimum distance from the edge of the base to the dowel - 100 mm
Installation instructions:
1. Drill a hole
2-3. Hammer to the stop, hitting the body of the dowel with a hammer
4-5. Hammer the spacer (nail) flush with the dowel
