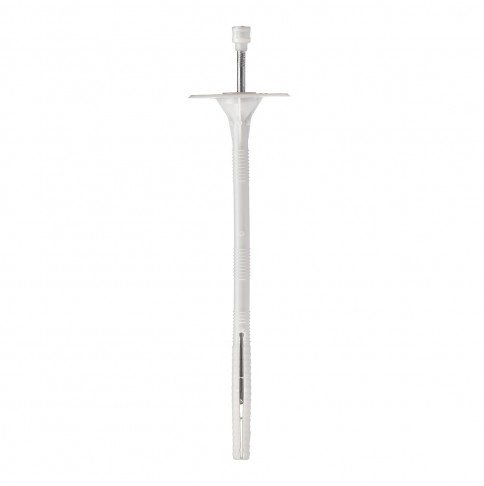

Name: Anchor for fixing thermal insulation with elongated expansion zone and metal nail and thermal head LDK/TZ EasyFix
Brand: EasyFix
SKU: EasyFix
Availability: InStock

Anchor for fixing thermal insulation with elongated expansion zone and metal nail and thermal head LDK/TZ EasyFix

Anchor for fixing thermal insulation with elongated expansion zone and metal nail and thermal head LDK/TZ EasyFix

Trademark: EasyFix
Country of origin: Ukraine

EasyFix

0 reviews - Write a review

Цена: 0.00 грн.

Advantages

Meets the requirements of DSTU B V.2.6-35: 2008, DSTU B V.2.6-36: 2008 and ETAG014
Extended thrust zone - 80mm
The shape of the expansion zone has been optimized for better installation in building materials
The special thermal head prevents the formation of a cold bridge and protects the rod from moisture penetration.

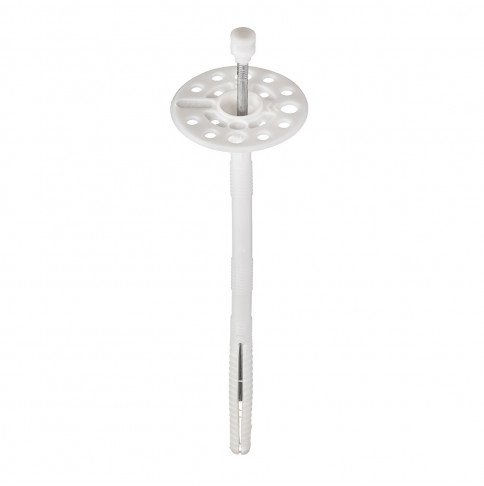

The perforated surface of the disc facilitates plaster work and guarantees high quality adhesion to the plaster.

Product information

Code	Diameter (drilling) nailed-in plastic anchor, mm	Nailed-in plastic anchor length, mm	Pressure disk diameter, mm	Thrust length, mm	Minimum installation depth, mm	Maximum thermal insulation thickness, mm	Minimum drilling depth for through installation, mm	Quantity per package, pcs.
LDK 10 100 TZ EasyFix	10	100	60	50	50	50	110	350
LDK 10 120 TZ EasyFix	10	120	60	50	50	70	130	300
LDK 10 140 TZ EasyFix	10	140	60	50	50	90	150	250
LDK 10 160 TZ EasyFix	10	160	60	80	50	110	170	200
LDK 10 180 TZ EasyFix	10	180	60	80	50	130	190	200
LDK 10 200 TZ EasyFix	10	200	60	80	50	150	210	150
LDK 10 220 TZ EasyFix	10	220	60	80	50	170	230	150

Estimated pull-out load:
from concrete - 0.75 kN
from solid red brick - 0.75 kN
from solid silicate brick - 0.75 kN
from a hollow ceramic block - 0.30 kN
from aerated concrete - 0.60 kN

Application area

Recommended for plaster facades and facades with a ventilated air layer.
For fixing such heat-insulating materials:

Styrofoam
Mineral wool
Styrofoam
Glass wool

Foundation materials

Technical Specifications

Characteristics
Length of spacing zone, mm	80
Nail material	steel
For fixing mineral wool	yes
For fixing foam	yes
For plaster facade	yes
For ventilated facade	yes

Installation instructions

Type of installation - push-through installation
For installation in aerated concrete, foam concrete, shell rock and ceramic hollow block, it is recommended to use only drilling without impact
Recommended mounting parameters:
minimum base thickness - 100 mm
minimum center distance between dowels - 100 mm
minimum distance from the edge of the base to the dowel - 100 mm
Installation instructions:
1. Drill a hole
2-3. Hammer to the stop, hitting the body of the dowel with a hammer
4-5. Hammer the spacer (nail) flush with the dowel
