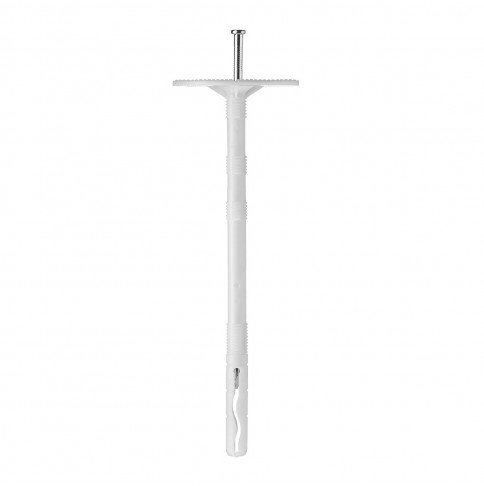

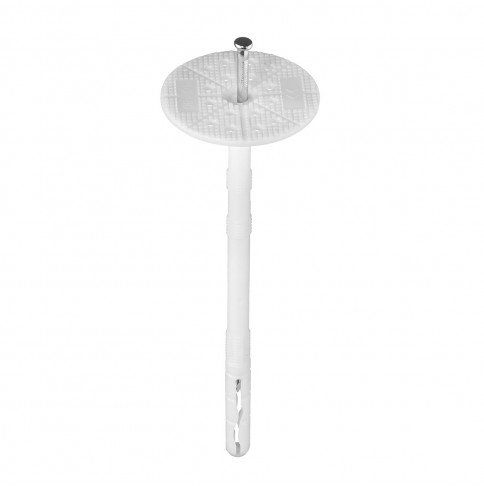

Name: Anchor for fixing thermal insulation with a metal nail LEH/TN
Brand: Starfix
SKU: Starfix
Availability: InStock

Anchor for fixing thermal insulation with a metal nail LEH/TN

Цена: 0.00 грн.

Code	Diameter (drilling) nailed-in plastic anchor, mm	Nailed-in plastic anchor length, mm	Pressure disk diameter, mm	Thrust length, mm	Minimum installation depth, mm	Maximum thermal insulation thickness, mm	Minimum drilling depth for through installation, mm	Quantity per package, pcs.
LEH 10 160 TN	10	160	60	50	50	110	170	200
LEH 10 180 TN	10	180	60	50	50	130	190	200
LEH 10 200 TN	10	200	60	50	50	150	210	150
LEH 10 220 TN	10	220	60	50	50	170	230	150
LEH 10 240 TN	10	240	60	50	50	190	250	100
LEH 10 260 TN	10	260	60	50	50	210	270	100

Estimated pull-out load:

from concrete - 0.75 kN
from solid red brick - 0.75 kN
from solid silicate brick - 0.75 kN
from aerated concrete - 0.60 kN

Foundation materials

Type of installation - push-through installation
For installation in aerated concrete, foam concrete, shell rock and ceramic hollow block, it is recommended to use only drilling without impact
Recommended mounting parameters:
minimum base thickness - 100 mm
minimum center distance between dowels - 100 mm
minimum distance from the edge of the base to the dowel - 100 mm
Installation instructions:
1. Drill a hole
2-3. Hammer to the stop, hitting the body of the dowel with a hammer
4-5. Hammer the spacer (nail) flush with the dowel

Anchor for fixing thermal insulation with a metal nail LEH/TN

Trademark: Starfix
Country of origin: Poland
