Name: Anchor for thermal and hydro insulation of flat roofs LDTK
Brand: Starfix
SKU: Starfix
Availability: InStock
Rating: 5 (2 reviews)

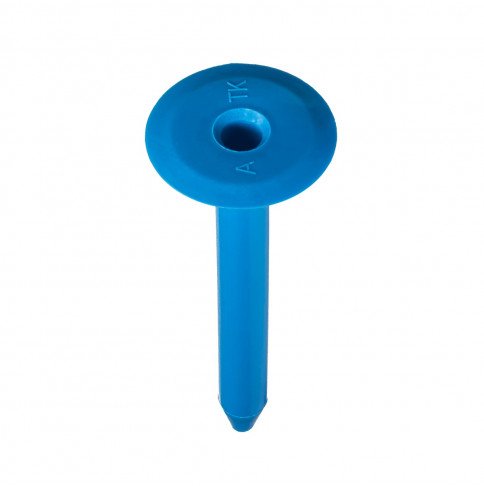

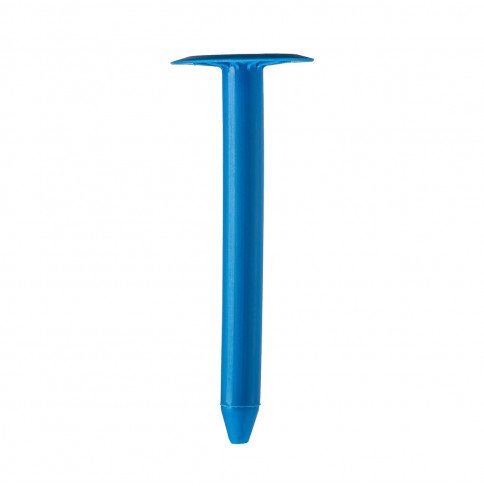

Anchor for thermal and hydro insulation of flat roofs LDTK

Anchor for thermal and hydro insulation of flat roofs LDTK

Trademark: Starfix
Country of origin: Poland

Starfix

2 reviews - Write a review

Цена: 0.00 грн.

Advantages

European Technical Assessment ETA
ITB technical assessment
Exclusive dowel lengths 385 mm, 425 mm, 525 mm
The telescopic connection avoids the appearance of a thermal bridge.
Retains properties over a wide temperature range
Recommended for fastening heat-insulating and waterproofing materials on a flat roof

Product information

Code	Nailed-in plastic anchor length, mm	Pressure disk diameter, mm	Screw hole diameter, mm	Quantity per package, pcs.
LDTK35	35	50	6,3	200
LDTK55	55	50	6,3	200
LDTK85	85	50	6,3	200
LDTK105	105	50	6,3	200
LDTK135	135	50	6,3	200
LDTK155	155	50	6,3	200
LDTK165	165	50	6,3	200
LDTK185	185	50	6,3	200
LDTK235	235	50	6.3	100
LDTK285	285	50	6.3	100
LDTK325	325	50	6.3	100
LDTK385	385	50	6.3	100
LDTK425	425	50	6.3	50
LDTK525	525	50	6.3	50

Application area

Designed for fastening on a flat roof (in combination with self-tapping screws WM, WB) of such heat-insulating materials:

Styrofoam
Mineral wool
Styrofoam
Glass wool
PIR

Foundation materials

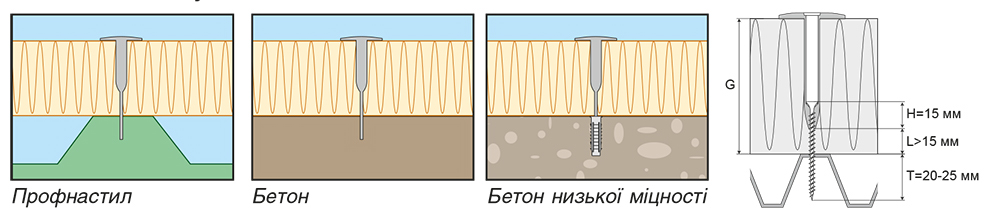

Installation instructions

Type of installation - push-through installation
Installation instructions:

Selection of fasteners for thermal insulation of soft roofs

Thermal insulation thickness, mm	Code	Self-tapping screw for fastening to corrugated board	Self-tapping screw for fixing in concrete	Thermal insulation thickness, mm	Code	Self-tapping screw for fastening to corrugated board	Self-tapping screw for fixing in concrete
50	LDTK35	WM 4,8×50	WB 6,1×60	260	LDTK185	WM 4,8×120	WB 6,1×120
60	LDTK35	WM 4,8×60	WB 6,1×70	260	LDTK235	WM 4,8×60	WB 6,1×70
70	LDTK35	WM 4,8×70	WB 6,1×80	270	LDTK185	WM 4,8×120	WB 6,1×140
70	LDTK55	WM 4,8×50	WB 6,1×60	270	LDTK235	WM 4,8×70	WB 6,1×80
80	LDTK55	WM 4,8×60	WB 6,1×70	280	LDTK185	WM 4,8×140	WB 6,1×140
90	LDTK55	WM 4,8×70	WB 6,1×80	280	LDTK235	WM 4,8×80	WB 6,1×90
100	LDTK55	WM 4,8×80	WB 6,1×90	290	LDTK185	WM 4,8×140	WB 6,1×150
100	LDTK85	WM 4,8×50	WB 6,1×60	290	LDTK235	WM 4,8×90	WB 6,1×100
110	LDTK85	WM 4,8×60	WB 6,1×70	300	LDTK235	WM 4,8×100	WB 6,1×120
120	LDTK85	WM 4,8×70	WB 6,1×80	300	LDTK285	WM 4,8×70	WB 6,1×80
120	LDTK105/RIF105	WM 4,8×50	WB 6,1×60	310	LDTK235	WM 4,8×120	WB 6,1×140
130	LDTK85	WM 4,8×80	WB 6,1×90	310	LDTK285	WM 4,8×60	WB 6,1×70
130	LDTK105/RIF105	WM 4,8×60	WB 6,1×70	320	LDTK235	WM 4,8×120	WB 6,1×140
140	LDTK85	WM 4,8×90	WB 6,1×100	320	LDTK285	WM 4,8×70	WB 6,1×80
140	LDTK105/RIF105	WM 4,8×70	WB 6,1×80	330	LDTK235	WM 4,8×140	WB 6,1×150
150	LDTK105/RIF105	WM 4,8×80	WB 6,1×90	330	LDTK285	WM 4,8×80	WB 6,1×90
150	LDTK135/RIF135	WM 4,8×50	WB 6,1×60	340	LDTK285	WM 4,8×90	WB 6,1×100
160	LDTK105/RIF105	WM 4,8×90	WB 6,1×100	340	LDTK325	WM 4,8×50	WB 6,1×60
160	LDTK135/RIF135	WM 4,8×60	WB 6,1×70	350	LDTK285	WM 4,8×100	WB 6,1×120
170	LDTK105/RIF105	WM 4,8×100	WB 6,1×120	350	LDTK325	WM 4,8×60	WB 6,1×70
170	LDTK135/RIF135	WM 4,8×70	WB 6,1×80	360	LDTK285	WM 4,8×120	WB 6,1×140
170	LDTK155/RIF155	WM 4,8×50	WB 6,1×60	360	LDTK325	WM 4,8×70	WB 6,1×80
180	LDTK135/RIF135	WM 4,8×80	WB 6,1×90	370	LDTK285	WM 4,8×120	WB 6,1×140
180	LDTK155/RIF155	WM 4,8×60	WB 6,1×70	370	LDTK325	WM 4,8×80	WB 6,1×90
180	LDTK165	WM 4,8×50	WB 6,1×60	380	LDTK285	WM 4,8×140	WB 6,1×150
190	LDTK135/RIF135	WM 4,8×90	WB 6,1×100	380	LDTK325	WM 4,8×90	WB 6,1×100
190	LDTK155/RIF155	WM 4,8×70	WB 6,1×80	390	LDTK285	WM 4,8×140	WB 6,1×150
190	LDTK165	WM 4,8×60	WB 6,1×70	390	LDTK325	WM 4,8×100	WB 6,1×120
200	LDTK135/RIF135	WM 4,8×100	WB 6,1×120	400	LDTK325	WM 4,8×120	WB 6,1×140
200	LDTK155/RIF155	WM 4,8×80	WB 6,1×90	400	LDTK385	WM 4,8×50	WB 6,1×60
200	LDTK165	WM 4,8×70	WB 6,1×80	410	LDTK325	WM 4,8×120	WB 6,1×140
200	LDTK185	WM 4,8×50	WB 6,1×60	410	LDTK385	WM 4,8×60	WB 6,1×70
210	LDTK155/RIF155	WM 4,8×90	WB 6,1×100	420	LDTK325	WM 4,8×140	WB 6,1×150
210	LDTK165	WM 4,8×80	WB 6,1×90	420	LDTK385	WM 4,8×70	WB 6,1×80
210	LDTK185	WM 4,8×60	WB 6,1×70	430	LDTK325	WM 4,8×140	WB 6,1×150
220	LDTK155/RIF155	WM 4,8×100	WB 6,1×120	430	LDTK385	WM 4,8×80	WB 6,1×90
220	LDTK165	WM 4,8×90	WB 6,1×100	440	LDTK385	WM 4,8×90	WB 6,1×100
220	LDTK185	WM 4,8×70	WB 6,1×80	440	LDTK425	WM 4,8×50	WB 6,1×60
230	LDTK165	WM 4,8×100	WB 6,1×120	450	LDTK385	WM 4,8×100	WB 6,1×120
230	LDTK185	WM 4,8×80	WB 6,1×90	450	LDTK425	WM 4,8×60	WB 6,1×70
240	LDTK165	WM 4,8×120	WB 6,1×120	460	LDTK385	WM 4,8×120	WB 6,1×140
240	LDTK185	WM 4,8×90	WB 6,1×100	460	LDTK425	WM 4,8×70	WB 6,1×80
250	LDTK165	WM 4,8×120	WB 6,1×140	470	LDTK385	WM 4,8×120	WB 6,1×140
250	LDTK185	WM 4,8×100	WB 6,1×120	470	LDTK425	WM 4,8×80	WB 6,1×90
250	LDTK235	WM 4,8×50	WB 6,1×60	480	LDTK425	WM 4,8×90	WB 6,1×100

Documents and downloads

Certificate of quality UA 2023
