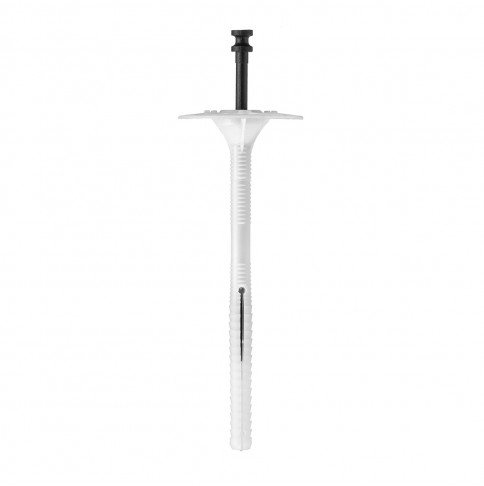

Anchor for fixing thermal insulation with elongated expansion zone and polyamide rod LDK/GZN

 Anchor for fixing thermal insulation with elongated expansion zone and  polyamide rod  LDK/GZN
 Anchor for fixing thermal insulation with elongated expansion zone and  polyamide rod  LDK/GZN
 Anchor for fixing thermal insulation with elongated expansion zone and  polyamide rod  LDK/GZN
 Anchor for fixing thermal insulation with elongated expansion zone and  polyamide rod  LDK/GZN
Anchor for fixing thermal insulation with elongated expansion zone and polyamide rod LDK/GZN
  • Trademark: EasyFix
  • Country of origin: Ukraine
Цена: 0.00 грн.
  • Meets the requirements of DSTU B V.2.6-35: 2008, DSTU B V.2.6-36: 2008 and ETAG014
  • Extended thrust zone - 80mm
  • The shape of the expansion zone has been optimized for better installation in building materials

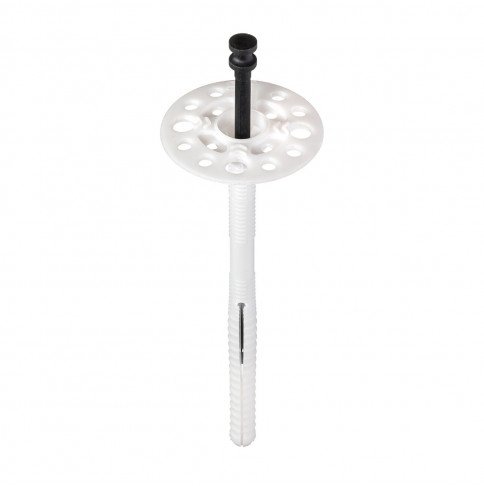

  • The perforated surface of the disc facilitates plaster work and guarantees high quality adhesion to the plaster.
  • Certified for use in all substrate categories A, B, C, D, E.

Code

Diameter (drilling) nailed-in plastic anchor, mm

Nailed-in plastic anchor length, mm

Pressure disk diameter, mm

Thrust length, mm

 Minimum installation depth, mm

Maximum thermal insulation thickness, mm

Minimum drilling depth for through installation, mm

Quantity per package, pcs.

LDK 10 80 GZN10806050503090400
LDK 10 100 GZN1010060505050110350
LDK 10 120 GZN1012060505070130300
LDK 10 140 GZN1014060505090150250
LDK 10 160 GZN10160608050110170200
LDK 10 180 GZN10180608050130190200
LDK 10 200 GZN10200608050150210150
LDK 10 220 GZN10220608050170230150
LDK 10 240 GZN10240608050190250100
LDK 10 260 GZN10260608050210270100

 Расчетная нагрузка на вырывание :
 c бетона - 0,4 kN
 с полнотелого красного кирпича - 0,2 kN
 с полнотелого силикатного кирпича - 0,2 kN
 с пустотелого керамического блока - 0,2 kN
 с газобетона - 0,2 kN

Recommended for plaster facades and facades with a ventilated air layer.
For fixing such heat-insulating materials:
  • Styrofoam
  • Mineral wool
  • Styrofoam
  • Glass wool

Foundation materials



Characteristics
Length of spacing zone, mm80
Nail materialpolyamide
For fixing mineral woolyes
For fixing foamyes
For plaster facadeyes
For ventilated facadeyes

  • Type of installation - push-through installation
  • For installation in aerated concrete, foam concrete, shell rock and ceramic hollow block, it is recommended to use only drilling without impact
  • Recommended mounting parameters:
  • minimum base thickness - 100 mm
  • minimum center distance between dowels - 100 mm
  • minimum distance from the edge of the base to the dowel - 100 mm
  • Installation instructions:
  • 1. Drill a hole
  • 2-3. Hammer to the stop, hitting the body of the dowel with a hammer
  • 4-5. Hammer the spacer (nail) flush with the dowel
